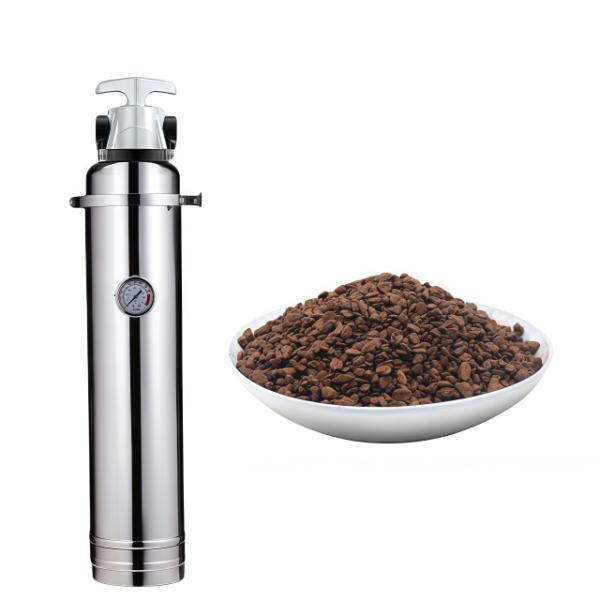

Stainless Steel Manganese Sand Water Filter 1000-3000L Well Wate Quartz Sand Filter water Purifier System
1. Manganese Sand and Quartz Sand and Activated Carbon Water Purifier Technical Parameters.
| Item | Technical Parameter |
| Water Source | Ground water |
| Type | Whole house filter |
| Warranty | More than 2 years |
| Filter material | Manganese Sand, Quartz Sand, Activated Carbon |
| Material | 304 Stainless Steel |
| Function | Iron and Manganese Exceed the Standard Remove Different Color Odor |
| Applicable water Pressure | 0.1-0.6Mpa |
| Purified water flow rate | 3000.5000.8000L/h |
2. Factory Profile.
Shenzhen Hanlan Environmental Protection Technology Co., Ltd, was established in 2010and was recognized as a National High-tech Enterprise of China in 2024. The company focuseson the water purification field, possessing global R&D innovation, intelligent manufacturing,supply chain integration, and software and hardware service capabilities. We hold over 100national patents and has an annual production capacity of 5 million units, providing OEM and ODM solutions for over 100 brands worldwide.
3. Manganese Sand and Quartz Sand and Activated Carbon Water Purifier Water Purifier Key Features and Benefits.
The typical configuration is as follows:
| Filtering stage | Filter element type | Function |
| 1 | Manganese Sand | Key features: High-efficiency iron and manganese removal: Through the surface oxide layer, divalent iron (Fe²⁺) and divalent manganese (Mn²⁺) in water are converted into insoluble trivalent iron (Fe³⁺) and tetravalent manganese (Mn⁴⁺). The iron removal rate can reach 99%, and the manganese concentration can be reduced to below 0.1 mg/L.
No chemical additives required: It only needs to be used in conjunction with aeration or contact oxidation equipment, without the need to add additional chemicals. It is environmentally friendly and has low operating costs.
Long service life and stability: High mechanical strength, stable chemical properties, service life can reach 3 to 5 years, and the backwashing loss rate is low.
Composite filtration structure: It is often combined with quartz sand, activated carbon, etc., to form multi-layer filtration and improve the accuracy of pollution interception.
Application scenarios:
Groundwater treatment (such as rural water supply and industrial water use);
Pretreatment of high-iron manganese water quality (such as in the petroleum and textile industries) |
| 2 | Quartz Sand | Key features of Mod: High-efficiency suspended solids removal: Through mechanical retention and surface adsorption, it can remove suspended solids, colloids, bacteria, etc., and the effluent turbidity is less than 5 NTU.
Adaptive filtration: The filter bed automatically forms a "loose at the top and dense at the bottom" structure, which can adapt to different water quality conditions and has a good backwashing effect.
Acid and alkali resistance and anti-pollution: It has a wide pH range of application (2-13), strong oxidation resistance, and is suitable for treating water with high turbidity.
Fast filtering: The filtering speed reaches 7-30 m/h, suitable for high-traffic scenarios.
Application scenarios:
Industrial water pretreatment (such as RO systems, cooling circulating water);
Municipal water supply and swimming pool circulation purification |
| 3 | Activated Carbon | Key features: Adsorb broad-spectrum pollutants: Effectively remove residual chlorine, organic compounds (VOCs), pesticides, odors and some heavy metals (such as lead and mercury).
Improve taste and safety: Significantly reduce the chlorine taste, enhance the palatability of drinking water, and lower the risk of water-borne diseases.
Environmental protection and economy: Replace bottled water and reduce plastic pollution; It is easy to maintain and the replacement cycle is 6 to 12 months.
Multi-functional combination: It is often used in combination with quartz sand and manganese sand to enhance the comprehensive purification effect (such as adsorbing organic matter after removing iron and manganese).
Application scenarios:
Household water purifiers, food and beverage industry;
Advanced treatment of industrial wastewater (such as dye factories, pharmaceutical factories) |
The advantages of the combined system
* Synergistic purification: Manganese sand removes iron and manganese → Quartz sand intercepts suspended solids → Activated carbon adsorbs organic matter, forming a hierarchical treatment.
* Economical and efficient: Reduce the load on a single filter material, extend the overall service life, and be suitable for complex water qualities.
* Flexible adaptation: The filter material ratio can be adjusted according to demand (for example, high-manganese groundwater requires manganese sand with MnO₂ content ≥35%).
